Autonomy
115km
Size
S
Weight
30.3kg
GVWR
135kg
Frame type
Open
Warranty
5 years frame and fork Moustache Bikes - 2 years motor, battery
Frame
J, aluminium AlSi10Mg T6, one-piece gravity cast, low stepover, increase rigidity thanks to internal ribs, unified rear swingarm, discreet internal cable routing, integrated battery and drive unit
Fork
SR Suntour, Mobie 25, preload adjustment & lockout function, 100mm travel
Shock
Moustache, Magic Grip Control 115, specific Air Shock with 2-position platform and dynamic control of rebound, build-in 165x38mm, 115mm travel
Motor
Bosch, Performance Line, Smart System, 75Nm
Battery
Bosch, PowerTube 500Wh, vertical, Smart System
Charger
Bosch, 2Ah
Remote
Bosch, Purion 200, Smart System
Chainring
Narrow-Wide, 40 teeth
Cassette
Shimano, Nexus, 30T
Chain
Shimano, HG40, 118 links
Shifter
Shimano, Nexus SL-C7000-5, 5-speed
Cranks
Moustache, aluminium, 170mm moteur Gen3
Front brake
Magura, MTA2, hydraulic disc, 2 pistons
Rear Brake
Magura, MTA2, hydraulic disc, 2 pistons
Front Rotor
Magura, MT A2, 180mm
Rear Rotor
Magura, MT A2, 160mm
Front Hub
Moustache, 32H, 15x100mm, thru axle
Rear Hub
Shimano, Nexus, 32H, 263% gear range, 10x135mm, nut
Saddle
Selle Royal, Essenza + moderate wide
Seatpost
EXA, 900i, dropper-post w/remote lever, 31.6mm, 75mm
Seatclamp
Moustache, alloy, integrated, 34.9mm
Handlebar
Moustache, ergonomique, aluminium, 680mm, backsweep 25°
Stem
Moustache, alloy, adjustable, 110mm
Headset
Acros, AZF-699, sealed bearings, internal routing, blocklock
Grips
SB3, Ergonomic
Lock
AXA, Fold Pro 100, 100 cm long folding lock
Kickstand
Moustache, adjustable
Mudguard
Moustache, alloy, double wall design, w/alloy stays, stable and perfect protection thanks to the mudflap

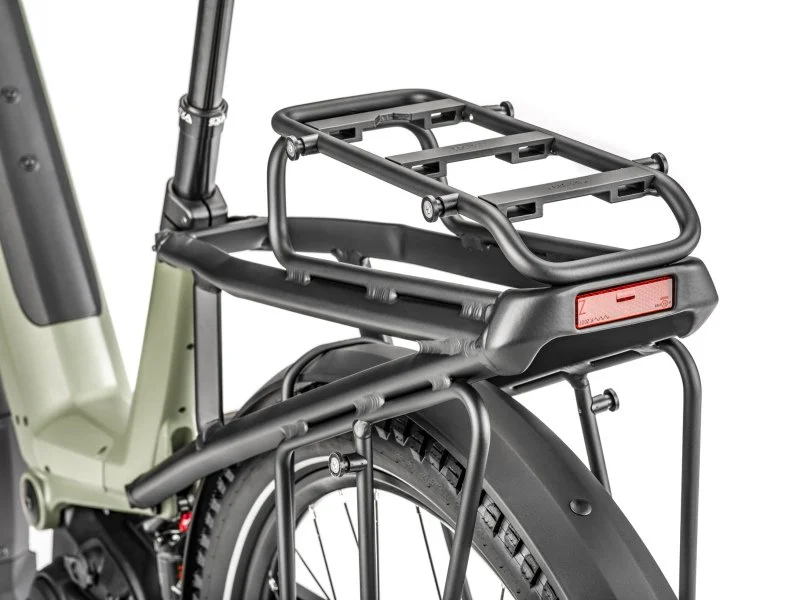

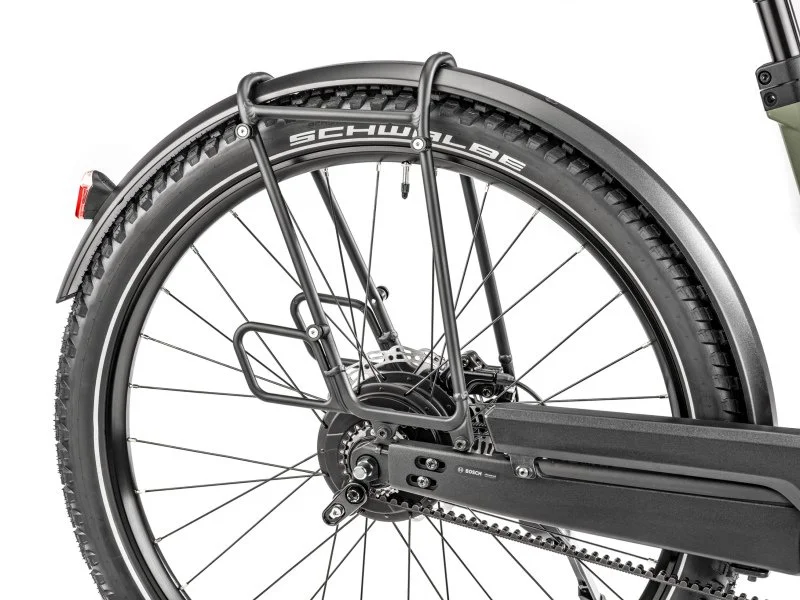

Carrier
Moustache, alloy, removable QL3 lateral fixation
Pedals
alloy platform with reflectors
Color
Olive matt
Display
Bosch, Purion 200, Smart System
Rear Derailleur
Shimano, Nexus, 32H, 263% gear range, 10x135mm, nut
BCM
Not equipped with Bosch ConnectModule
Front rim
Moustache, asymmetric, alloy 6061E, welded, 32 holes, 27.5', internal width 23mm
Rear rim
Moustache, asymmetric, alloy 6061E, welded, 32 holes, 27.5', internal width 23mm
Front tyre
Schwalbe, Super Moto-X, 27.5x2.40
Front light
Spanninga, integrated, 30 lux, powered by main battery Lundi 26 6V BES1 / BES2
Rear light
Spanninga, Presto2Guard, powered by main battery
Horn
Spanninga Minibell Black
Product specifications may change without notice. Non-binding information.
