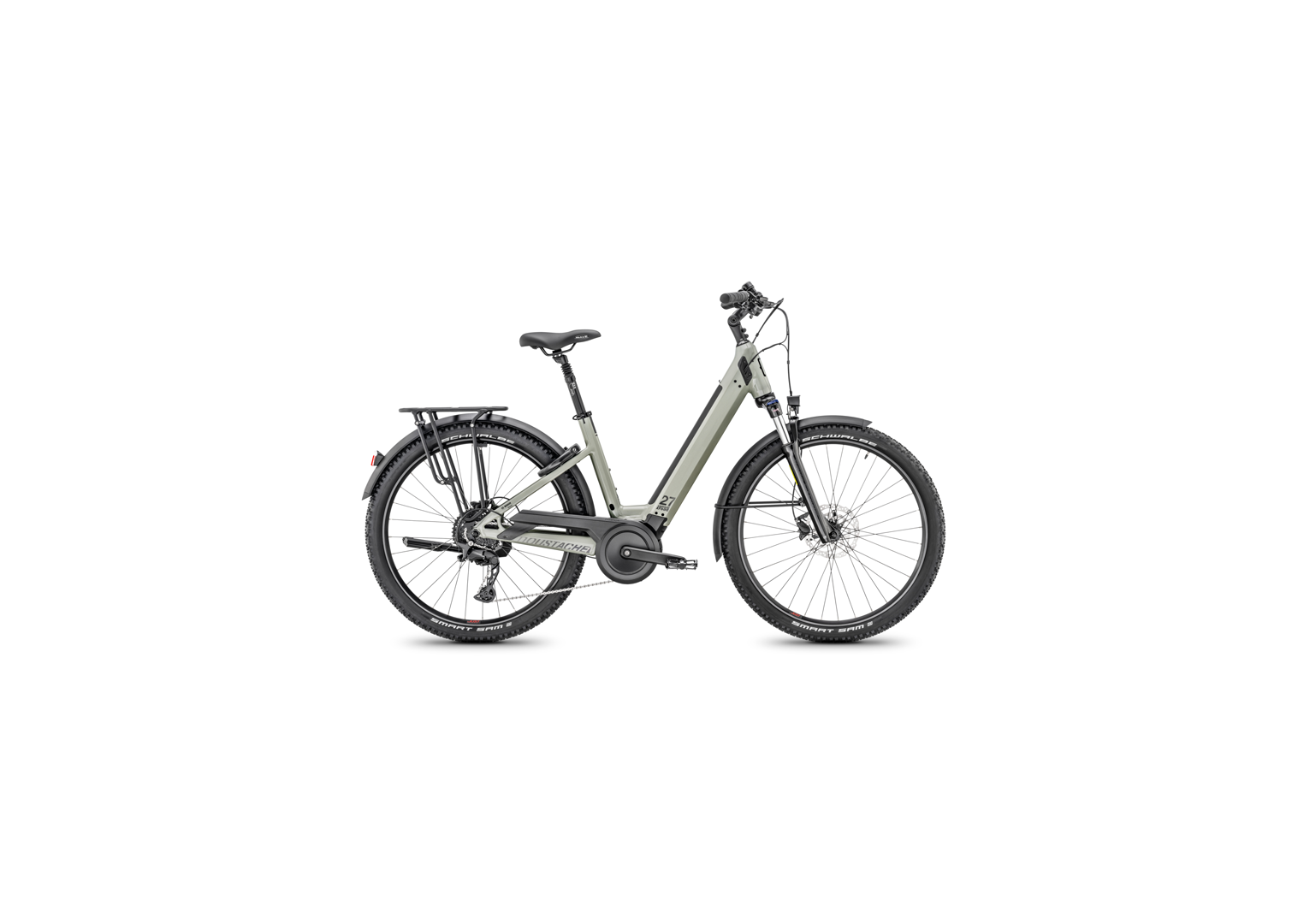

Xroad 4 2025

from £3,299.00

As comfortable on country paths as in the heart of the urban jungle, more powerful than ever and just as solidly equipped, the Samedi 27 Xroad 4 is also connected, offering new features! For example, use the navigation function, enhance theft protection, customize the assistance modes and screen displays to your preferences, or unlock your e-bike via the screen.

Choose your frame:
Select your color:
Choose your battery:
Choose your size:

As comfortable on country paths as in the heart of the urban jungle, more powerful than ever and just as solidly equipped, the Samedi 27 Xroad 4 is also connected, offering new features! For example, use the navigation function, enhance theft protection, customize the assistance modes and screen displays to your preferences, or unlock your e-bike via the screen.

Standard Frame Size

S (1,55 -1,70m) M (1,68 - 1,83m) L (1,80 - 1,95m) XL (1,90 - 2,05m)

Open Frame Size

S (1,49 -1,61m) ; M (1,59 - 1,76m) ; L (1,74 - 1,90m)





  • Weight

  • 26.5kg

  • GVWR

  • 135kg

  • Frame type

  • Open

  • Warranty

  • 5 years frame and fork Moustache Bikes - 2 years motor, battery

  • Autonomy

  • 156km

  • Frame

  • Xroad Open, 6061 T4-T6 alloy, variable thickness hydroformed tubes, Bosch PowerTube battery integration (vertical), integrated cable routing

  • Fork

  • SR Suntour, XCM32-ATB, NLO, preload adjustment & lockout function, 100mm travel

  • Motor

  • Bosch, Performance Line, Smart System, 75Nm

  • Battery

  • Bosch, PowerTube 625Wh, vertical, Smart System

  • Charger

  • Bosch, 4Ah

  • Remote

  • Bosch, Purion 200, Smart System

  • Rear Derailleur

  • Shimano, CUES, RD-U6020, 10-speed

  • Chainring

  • Narrow-Wide, 40 teeth

  • Cassette

  • Shimano, CUES, CS-LG300 10-speed, 11-39T

  • Chain

  • Shimano, CN-LG500, 120 links

  • Shifter

  • Shimano, CUES, SL-U6000-10R, 10-speed

  • Cranks

  • Moustache, aluminium, 170mm moteur Gen3

  • Front brake

  • Shimano, MT200 or Alhonga HJ-472, hydraulic disc brake

  • Rear Brake

  • Shimano, MT200 or Alhonga HJ-472, hydraulic disc brake

  • Front Rotor

  • Shimano, 180mm or Alhonga, 180mm

  • Rear Rotor

  • Shimano, 160mm or Alhonga, 160mm

  • Front Hub

  • Shimano, 32H, 9x100mm, QR (Quick Release)

  • Rear Hub

  • Shimano, 32H, 9x135mm, QR (Quick Release)

  • Saddle

  • Selle Royal, Essenza + moderate

  • Seatpost

  • Suspension, alloy, 31.6mm, 350mm, 40mm travel

  • Seatclamp

  • Moustache, alloy, 34.9mm

  • Handlebar

  • Moustache, ergonomic, alloy, 680mm, 25° backsweep

  • Stem

  • Moustache, alloy, adjustable, 90mm

  • Headset

  • FSA, No 57B

  • Grips

  • Ergonomic, dual-density

  • Lock

  • AXA, Block XXL, same key for framelock & battery lock

  • Kickstand

  • Moustache, adjustable

  • Mudguard

  • Moustache, alloy, double wall design, w/alloy stays

  • Carrier

  • Moustache, alloy, removable QL3 lateral fixation, MIK HD platform

  • Pedals

  • alloy platform with reflectors

  • Color

  • Chalk glossy

  • BCM

  • Not equipped with Bosch ConnectModule

  • Front rim

  • Moustache, asymmetric, alloy 6061E, welded, 32 holes, 27.5", internal width 23mm

  • Rear rim

  • Moustache, asymmetric, alloy 6061E, welded, 32 holes, 27.5", internal width 23mm

  • Front tyre

  • Schwalbe, Smart Sam, 27.5x2.25

  • Front light

  • AXA, NXT, 30 lux, powered by main battery

  • Rear light

  • Spanninga, Presto2Guard, powered by main battery

Product specifications may change without notice. Non-binding information.
